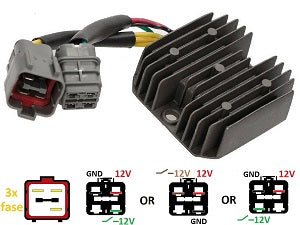

TGB 3 Phase Replacement Alternator Regulator Plug and Play

ALTERNATOR REGULATOR FOR TGB VEHICLES in Plug and Play

Replacement for the following TGB types.

Since we have discovered that problems with the on-board electronics can occur in various TGB vehicles due to an undersized voltage regulator and poor cooling, which can then lead to a defect in the instrument, we now also offer a suitable alternator regulator in plug and play.

Suitable for the following models:

• TGB Bellavita 125i voltage regulator rectifier
• TGB X Motion 250 Voltage Regulator Rectifier
• TGB X Motion 300 Voltage Regulator Rectifier
• TGB Blade 250 Voltage Regulator Rectifier
• TGB Blade 325 Voltage Regulator Rectifier
• TGB Blade 425 Voltage Regulator Rectifier
• TGB Blade 500 Voltage Regulator Rectifier
• TGB Blade 525 Voltage Regulator Rectifier
• TGB Blade 550 Voltage Regulator Rectifier
• TGB Blade 550 EFI LT Voltage Regulator Rectifier
• TGB Target 250 Voltage Regulator Rectifier
• TGB Target 325 Voltage Regulator Rectifier
• TGB Target 425 Voltage Regulator Rectifier
• TGB Target 500 Voltage Regulator Rectifier
• TGB Target 525 Voltage Regulator Rectifier
• TGB Target 550 Voltage Regulator Rectifier
• TGB Gunner 550 Voltage Regulator Rectifier
• TGB Blade 550SE voltage regulator rectifier
• TGB GUNNER 550 voltage regulator

Rectifier OEM numbers:

• TGB-923451-1
• TGB-926747-1
• 4057711010411
• 2112-0265-Blade325
• REG-926747 / REG-59G
• 923451
• 923404
• 925803
• 924412
• 926747

Features:

• Special voltage regulator (3 phases)
• Completely electronically controlled
• Always 100% fully charged battery
• More charging power than the original standard alternator regulator
• The charging process starts at idle speed
• Safe shutdown at 14.7V

characteristics

• Charge controller for permanent magnet three-phase generators up to 370W
• Also suitable for lithium batteries
• Large-surface aluminum heat sink for optimal heat dissipation
• Plug and Play solution

Technical data

Nominal charging voltage 14.7 ±0.5 VDCCharging current 35 A max. / 25 A eff.Operating temperature -10..+80°CBattery capacity 12 V / 4..50 AhConnection cross-section 2.5mm² (min.)

IP 67 (waterproof connectors)Weight 220 gDimensions (LxWxH) 80 x 67.5 x 30mmHole spacing 60 mm

2-year warranty

scope of delivery

The Plug and Play alternator regulator is delivered including the following accessories:

• A universal alternator regulator
• 2 gray waterproof plugs with connectors
• assembly instructions
