MOSFET UB-CARR511 charging/voltage regulator for Cagiva-Ducati-Moto Guzzi-/Laverda and lithium batteries

MOSFET UB-CARR511 charging/voltage regulator for Cagiva-Ducati-Moto Guzzi-/Laverda and lithium batteries

For all motorcycle types for use with lithium batteries.

Since many motorcyclists are already switching to lithium battery technology, which can then be exchanged 1:1 with a conventional lead or gel battery, it should be noted:

Since many motorcycles (mostly older ones up to 1993) still have alternator regulators (2-3 phases) that do not fully charge lithium batteries or deliver too high charging currents, which can shorten the running time or even cause a defect, it would be a good idea to check this in advance before installing our Ultrabatt lithium batteries/modules or installing a suitable regulator at the same time!

Features:

• Special voltage regulator (2 phases) suitable for lithium starter batteries
• Always 100% fully charged lithium starter batteries
• More charging power than the original standard alternator regulator
• The charging process starts at idle speed
• Safe shutdown at 14.5 - 14.8V

Advantages of the MOSFET UB-CARR511 - 2 phase lithium alternator regulator:

• The MOSFET UB-CARR511 charge controller prevents overcharging of the lithium battery
• The charging process starts even at low speed
• The lithium battery is fully charged to 100%
• easy installation with supplied connectors and matching plugs
• Safe, robust, waterproof and reliable

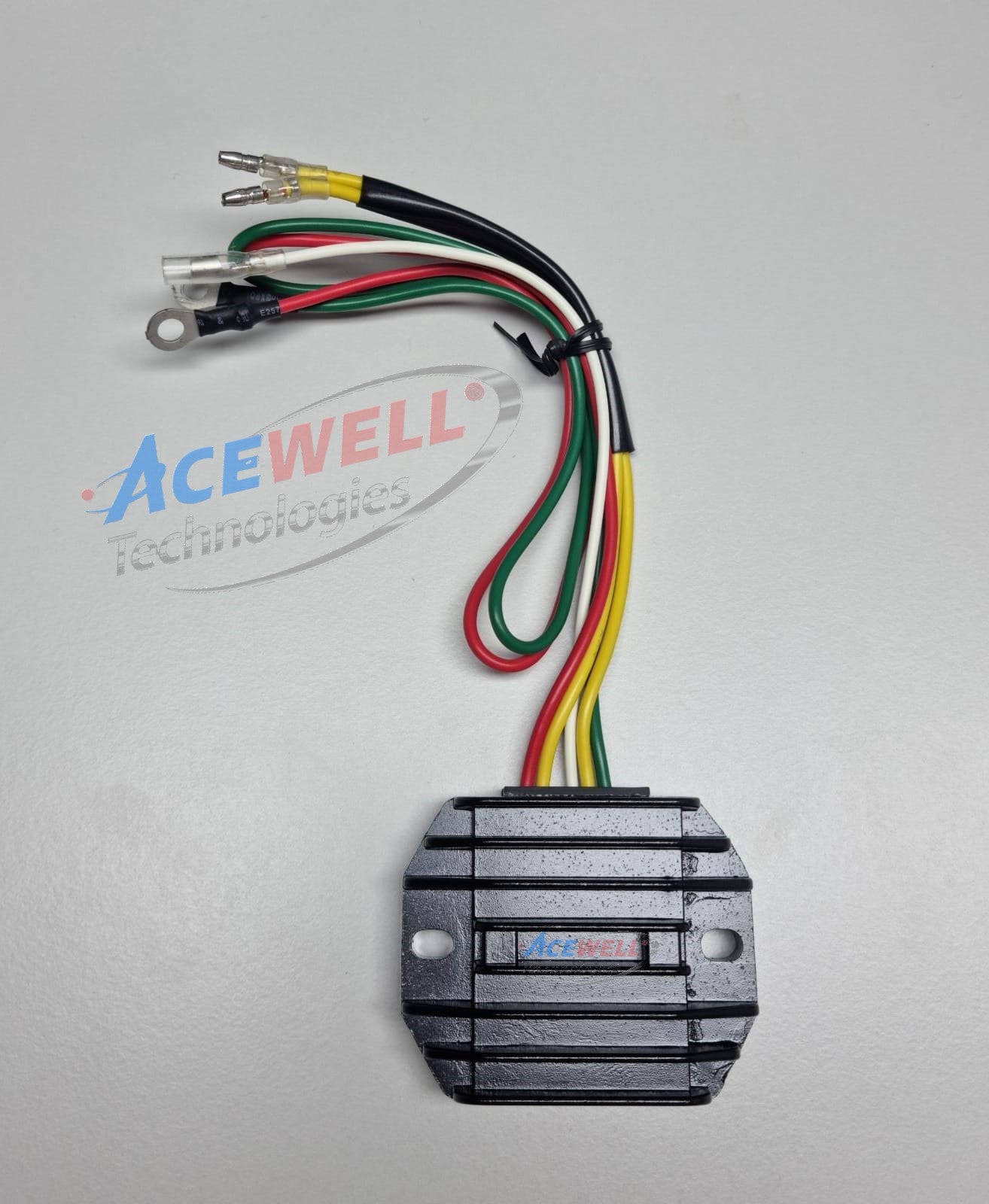

MOSFET UB-CARR511 - 12V / 50A Mosfet (5 wires, two phases)

1x ground (green) / 1x battery + (red) / 2x current coils (yellow) 1 x indicator light (white)

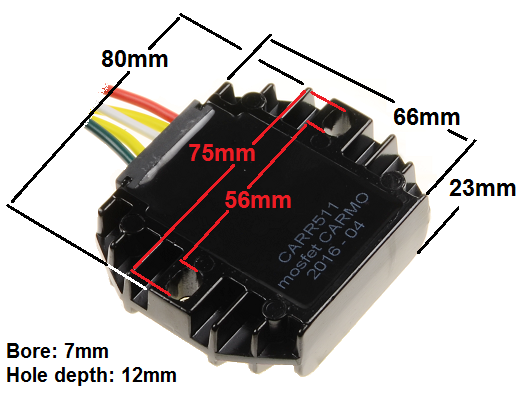

Dimensions: 80 x 66 x 23 mm (L x W x H) and drilling distance 56 mm

• 2-year warranty

Suitable for the following vehicles:

• Cagiva 650 Elefant voltage regulator rectifier
• Ducati Supersport 350SS Voltage Regulator Rectifier 1991 1992 1993
• Ducati Supersport 400SS Voltage Regulator Rectifier 1991 1992 1993 1994 1995 1996 1997
• Ducati Monster 400 M400 Voltage Regulator Rectifier 1996 1997 1998 1999
• Ducati Monster 600 M600 Voltage Regulator Rectifier 1994 1995 1996 1997
• Ducati Supersport 600SS Voltage Regulator Rectifier 1994 1995 1996 1997 1998
• Ducati 650 India Voltage Regulator Rectifier 1987
• Ducati Superbike 748 Biposto SP Voltage Regulator Rectifier 1994 1995 1996 1997
• Ducati Superbike 748 S Voltage Regulator Rectifier 1997
• Ducati 750 Paso Voltage Regulator Rectifier 1986 1987 1988 1989 1990
• Ducati 750 Santa Monica Voltage Regulator Rectifier 1986 1987 1988 1989 1990
• Ducati Monster 750 M750 Voltage Regulator Rectifier 1996 1997
• Ducati Sport 750 Voltage Regulator Rectifier 1988 1989 1990
• Ducati Supersport 750SS Voltage Regulator Rectifier 1991 1992 1993 1994 1995 1996 1997
• Ducati Superbike 851 Voltage Regulator Rectifier 1987 1988 1989 1990 1991 1992
• Ducati 860GT 860GTS Voltage Regulator Rectifier 1974 1975 1976 1977 1978
• Ducati Superbike 888 Voltage Regulator Rectifier 1991 1992 1993
• Ducati Monster 900 M900 Voltage Regulator Rectifier 1993 1994 1995 1996 1997
• Ducati 900SD Voltage Regulator Rectifier 1977 1978 1979 1980 1981 1982 1983
• Ducati Supersport 900SS Voltage Regulator Rectifier 1990 1991 1992 1993 1994 1995 1996 1997 1998
• Ducati Paso 906 Voltage Regulator Rectifier 1989 1990
• Ducati Paso 907ie Voltage Regulator Rectifier 1991 1992
• Ducati Superbike 916 Strada Biposto Voltage Regulator Rectifier 1994 1995 1996 1997
• Ducati Superbike 916 SP SPS Voltage Regulator Rectifier 1994 1995 1996 1997
• Ducati Supersport 1000 1000SS Voltage Regulator Rectifier 1979 1980 1981 1982 1983 1984 1985
• Ducati 1000S2 Voltage Regulator Rectifier 1984 1985
• Laverda 600 Atlas voltage regulator rectifier
• Laverda 650 Ghost Voltage Regulator Rectifier 1996
• Laverda 650IE Voltage Regulator Rectifier 1994 1995 1996
• Laverda 668IE voltage regulator rectifier 1996
• Moto Guzzi Ippogrifo V7 Voltage Regulator Rectifier 1997 1998
• Moto Guzzi 750 X Polizia Voltage Regulator Rectifier 1995 1996 1997 1998 1999 2000 2001 2002
• Moto Guzzi 850 T5 Polizia Voltage Regulator Rectifier 1994 1995 1996 1997 1998 1999 2000 2001
• Moto Guzzi California 1100 Voltage Regulator Rectifier 1994 1995 1996 1997
• Moto Guzzi California Special Voltage Regulator Rectifier 1999 2000 2001 2002
• Moto Guzzi California Jackal Voltage Regulator Rectifier 1999 2000 2001
• Moto Guzzi California EV Voltage Regulator Rectifier 1997 1998 1999 2000 2001 2002
• Moto Guzzi California Stone Voltage Regulator Rectifier 2001 2002
• Moto Guzzi V10 Centauro Voltage Regulator Rectifier 1996 1997 1998 1999 2000 2001
• Moto Guzzi Quota 1000 Voltage Regulator Rectifier 1991 1992 1993 1994 1995 1996 1997
• Moto Guzzi Quota 1100 ES Voltage Regulator Rectifier 1998 1999 2000 2001 2002
• Moto Guzzi 1000 Strada voltage regulator rectifier 1994

OEM numbers: 8000.67.608 / 540.4.008.1A / 699.2.082.1B / 540.4.003.1A / 699.2.084.1A / 4128.09.068 800067608 / 54040081A / 69920821B / 54040031A / 69920841A / 412809068 Ducati Energia Charging System

scope of delivery

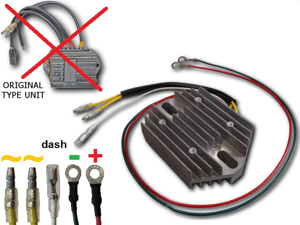

The MOSFET UB-CARR511 alternator regulator is delivered including the following accessories:

• A MOSFET UB-CARR511 lithium alternator regulator
• 2 yellow wires for the stator and a white wire to the instrument/indicator light battery symbol
• as well as a red and green cable with ring eyelet for connection to the battery
• assembly instructions
