Acewell ACE-IVR 01

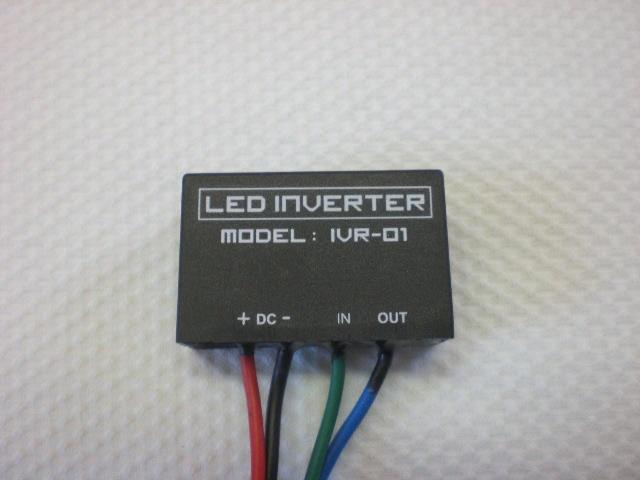

Function LED-INVERTER ACE-IVR 01:

The LED INVERTER converts the input control signal (IN) into the opposite signal (OUT). For example, incoming control signal (IN) is - output signal (OUT) becomes + control signal. This is necessary to convert the pre-assigned input control signals for the indicator lights.

Connection:

Red cable - switched plus

Black cable - vehicle ground

Green cable (IN) - vehicle control signal

Blue cable (OUT) - control signal LED indicator lamp
