Acewell ACE-MD085-354 series

Acewell ACE-MD085-354 series

€289,00 EUR
€289,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

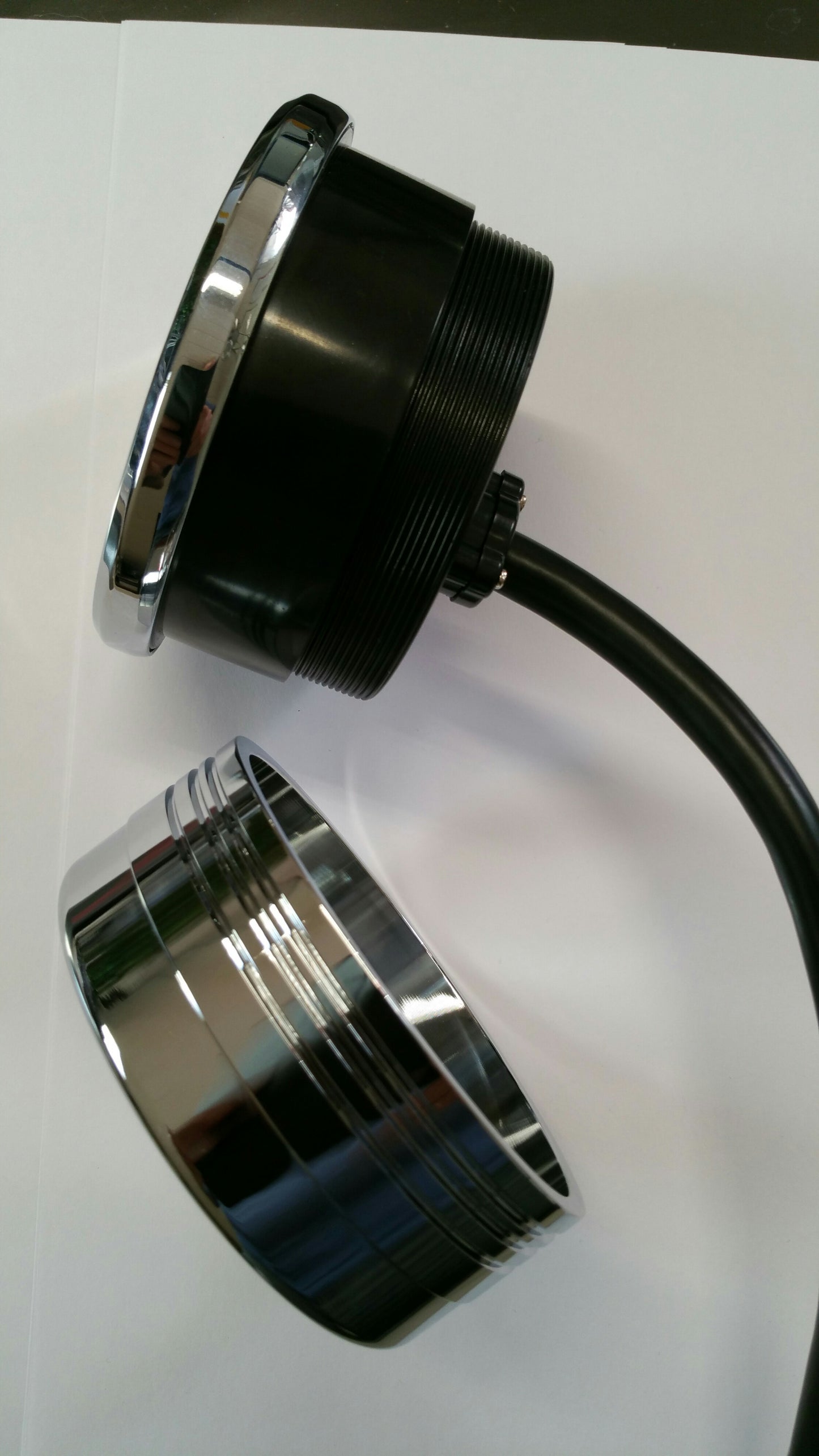

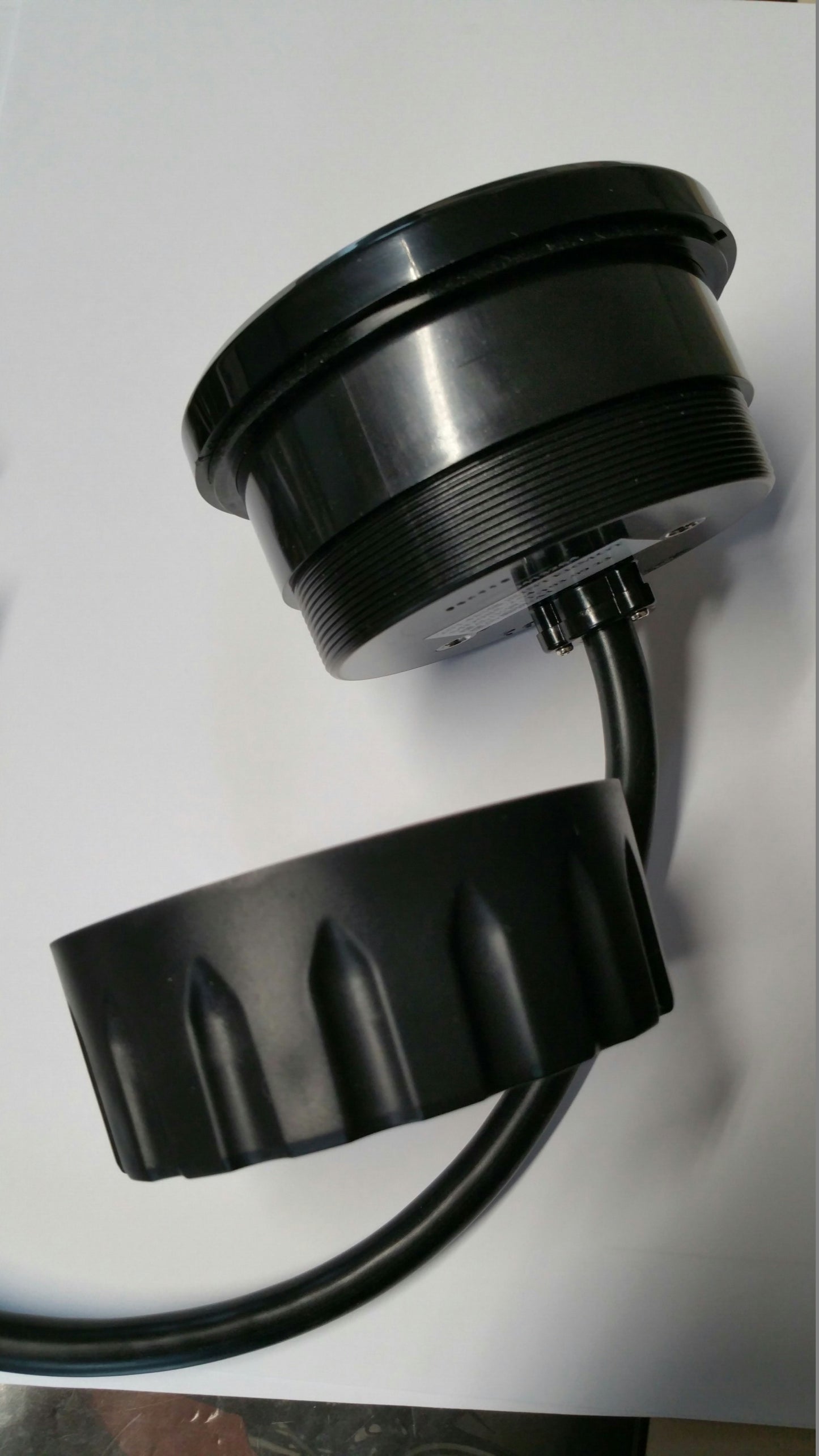

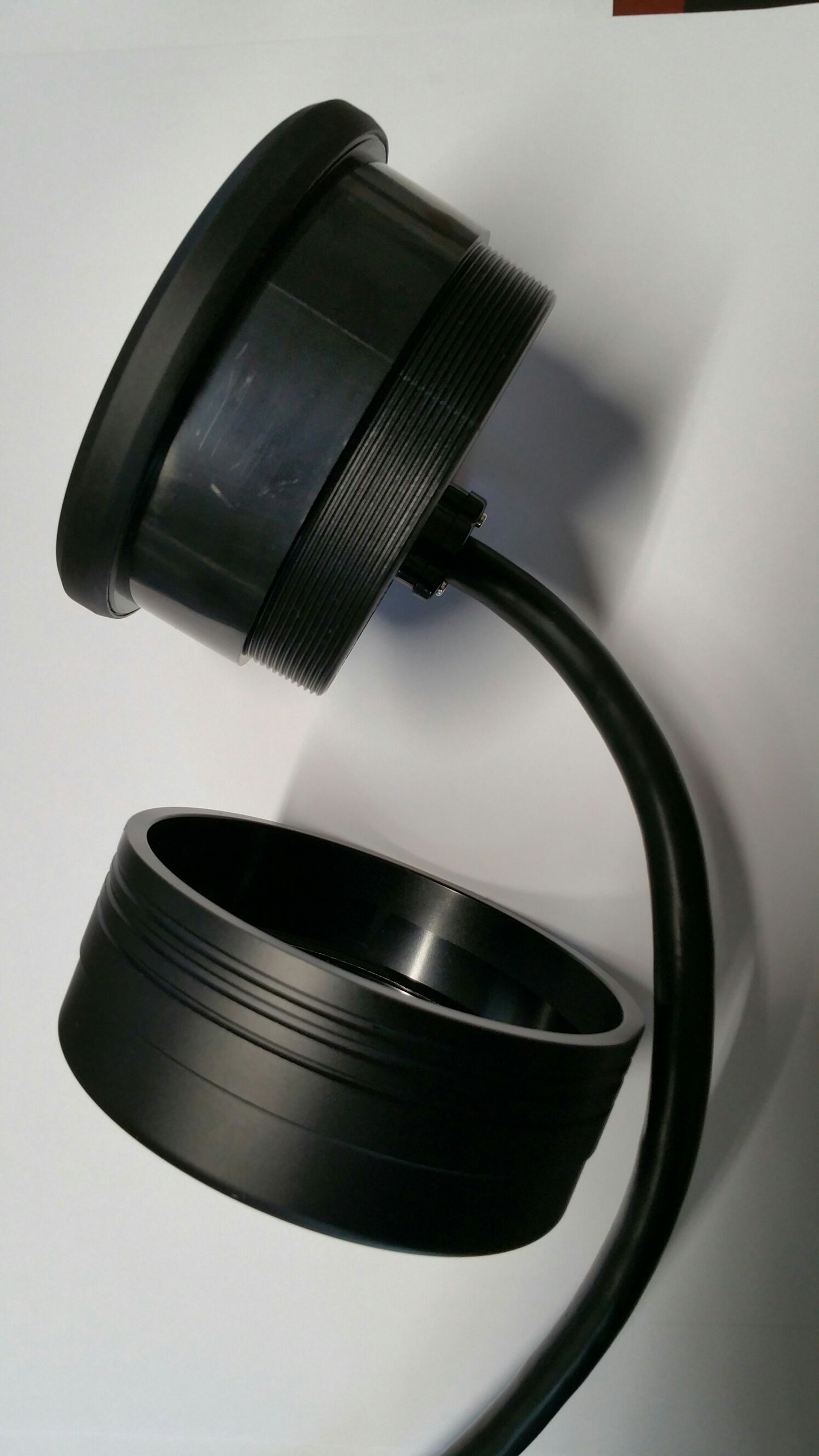

locking ring at the top
locking ring below
  • American Express
  • Apple Pay
  • EPS
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Union Pay
  • Visa

In stock

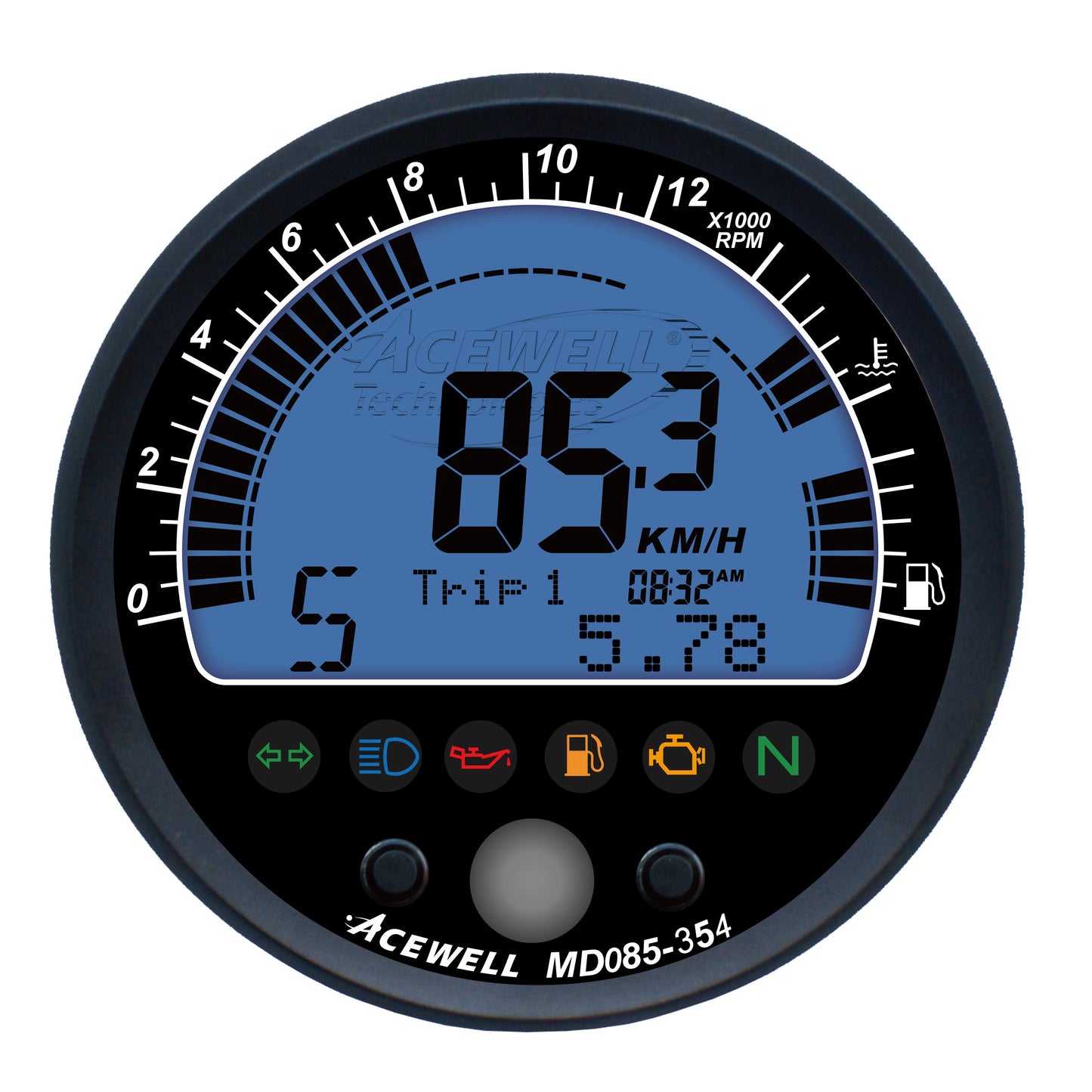

The Acewell motorcycle speedometer from the ACE-MD085-354 series is a round instrument with digital bar tachometer and digital speedometer and 5 other functions:

  • bar speed up to 12,000 rpm and shift light
  • digital speed display up to 399.9 km/h
  • Digital display of
    • trip meters TRIP 1 + 2
    • total mileage
    • Digital speed display up to 19,900 rpm
    • display average and maximum speed
    • Display average and maximum speed
    • acceleration and deceleration meters
    • Temperature - additional storage of the maximum temperature reached
    • gear indicator
    • fuel gauge
    • time
    • voltmeter
    • travel time
    • operating hour meter
    • Adjustable shift warning with LED display
      • Gear display is taken from rpm and speedometer and can be switched off via OFF mode
      • Scroll function of the second display line adjustable from 1-20 seconds or OFF mode
      • 6 LED indicator lights
      • Gear display up to 8 gears , neutral, reverse gear and off mode possible
      • 2 temperature displays for oil, water or outside temperature with additional warning LED display for overheating - sensors included!
      • Digital speed display up to 19,900 rpm
      • Bar tank display adjustable resistance range from 0 to 990 Ohm, or OFF mode
      • Battery monitoring adjustable from 11.0 to 15.0 volts, reports over-/undersupply
      • Maintenance reminder function, can be entered in hours or KM
      • When new, the total mileage can be freely adjusted for the first 30 km - after that no longer
      • Universal wheel circumference adjustment range: 1-3999mm
      • Reduction of speed from the original sensor possible.
      • The end user is able to display the speedometer with or without a decimal point.
      • Background color of the display can be selected in 3 colors. (Blue, Green, Amber)
      • Water resistant IP 67 and extremely water, vibration and shock resistant (vibrations 8G, shock 100G tested)
      • E-certified
      • ABE

scope of delivery

  • speed sensor with magnet
  • 1 temperature sensor M10x1
  • air temperature sensor
  • mounting material (Y-bracket with screws)
  • Cable set with waterproof connectors and shrink tubing
  • German installation instructions with circuit diagram
  • ABE

specifications

functions specifications interval accuracy
bar tachometer 0 -12,000 rpm RPM
digital tachometer 10-19,900 rpm 10 rpm
shift warning 100-19,900 rpm 100 rpm
speedometer 2.4-399.9 km/h 0.1 km/h ±1%
Digital temperature display T1 +50°C - +180°C

Max. Temperature +50°C - +180°C

bar tank display +/- 0-990 Ohm or off 7 bars
daily kilometers 1&2 0 - 9999.9 km 0.1 km ±0.1%
total kilometers 0 - 999999 Km 1 km ±0.1%
top speed 2.4-399.9 km/h 0.1 km/h
average speed 2.4-399.9 km/h 0.1 km/h
travel time RT 0:00'00'' - 99:59'59'' 1 second ± PPM
total time TT 0:00' - 9999:59' 1 minute ±50PPM
accelerometer SPD RT 0-100 meters, 0-400 meters, 0-1/4 mile
deceleration meter D SPD RT 0-100km/h, 50-70mph
time 0:00'00'' - 23:59'59'' 1 second/1 minute ±50PPM
voltmeter 8.0-25.0 volts 0.1 volts

Supply voltage: 12V DC voltage
tachometer input signal CDI, transistor ignition or ignition coil
Speed ​​sensor: Reed or Hall sensor
temperature sensor Thermo-Sensor M10x1
Wheel circumference adjustment: 1mm - 3999mm (1mm increments)
Operating temperature: -20°C. - +80°C. (inside the housing)
Storage temperature: -30°C. - +90°C. (inside the housing)


Mass:
Outside diameter, bore and depth: 95.0 mm Ø, 85.0 mm Ø and 56.1 mm

All settings, time and odometers remain intact when the power is off, with the exception of the clock. This means that operation on battery-free motorcycles with a direct current supply is also possible. The clock can be operated with a 9V block battery.

Note for BMW customers:

For an easy conversion we recommend the following items:

  • ACE-TA7 : electronic speedometer cable for 2V Boxer
  • ACE-IVR 03 Led Inverter, is required to charge the battery.
  • ACE-IHO instrument holder, for the Classic series if necessary.
